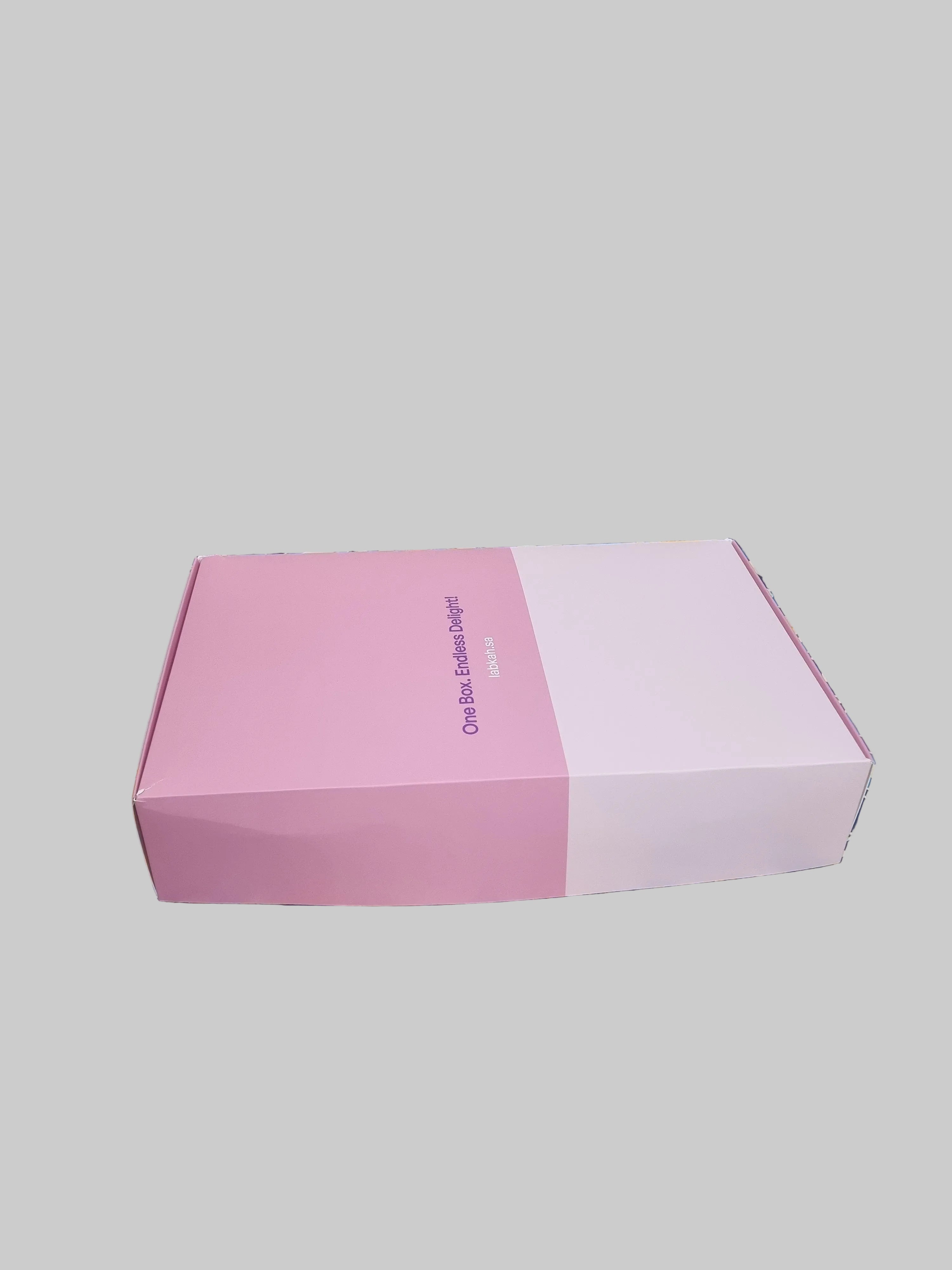

Custom Printed Food Box – For Aluminium Tray F278
Box Purpose
Rigid folding carton designed to:
-
Hold aluminium tray securely
-
Prevent movement during delivery
-
Include tray cut-out window
-
Include sauce cup holder
-
Include napkin / fork slot
-
Full custom printing (restaurant branding)

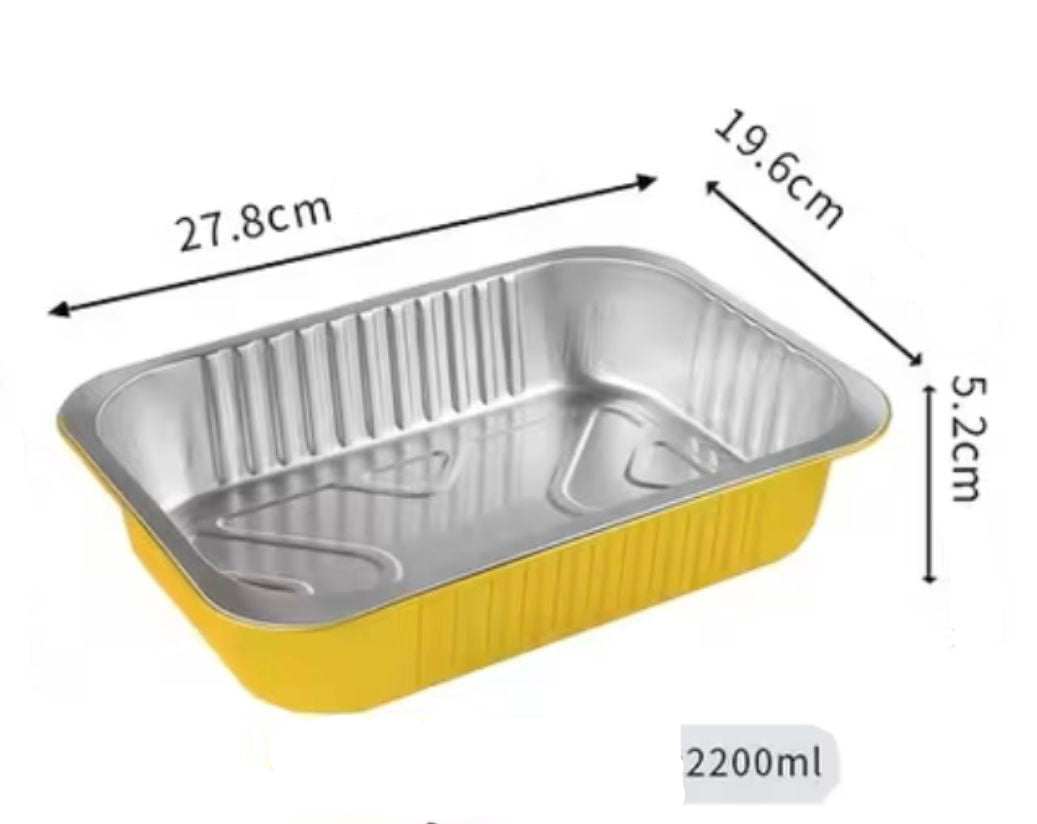

Internal Box Dimensions (Recommended Fit)
| Item | Size |
|---|---|
| Internal Length | 28.5 cm |
| Internal Width | 20.3 cm |
| Internal Height | 6.0 cm |
| Clearance | +7 mm around tray for easy insertion |
✔ Allows tray lip clearance
✔ Prevents pressure deformation
✔ Suitable for hot food packaging
Structural Features
Tray Window Cut-Out (Top Panel)
| Feature | Specification |
|---|---|
| Shape | Rounded rectangle |
| Window Size | 26.5 × 18.5 cm |
| Position | Centered top lid |
| Edge | Reinforced double fold |
Optional:
-
Transparent PET window
-
Open display cut-out
2️⃣ Sauce Cup Holder (Inside Corner)
| Feature | Specification |
|---|---|
| Shape | Circular die-cut |
| Diameter | 6 cm (standard sauce cup) |
| Position | Front right internal corner |
| Support | Lock tab or platform |
Optional sizes:
-
5 cm (garlic dip)
-
7.5 cm (large sauce)
3️⃣ Napkin / Fork Slot
| Feature | Specification |
|---|---|
| Shape | Rectangular slit |
| Size | 18 × 3 cm |
| Location | Inner side wall or lid |
| Capacity | 1 fork + napkin |
🏗 Box Style Recommendation
Best structure for strength and presentation:
✅ Lock-top clamshell food box
✅ Crash-lock auto bottom (delivery safe)
✅ Sleeve + tray box (premium option)
✅ Magnetic rigid box (luxury meals)
📄 Material Options
| Material | Thickness | Use |
|---|---|---|
| Food grade SBS board | 350 – 400 gsm | Standard |
| Kraft board | 300 – 350 gsm | Eco restaurants |
| Corrugated E-flute laminated | 1.5 mm | Heavy meals |
| Rigid cardboard | 1200 gsm | Premium packaging |
✨ Printing & Finishing
-
Full color CMYK printing
-
Matte / Gloss lamination
-
Spot UV logo
-
Gold foil (premium brand)
-
Grease resistant coating (recommended)
🍽 Suitable For
-
Chicken meals
-
Rice meals
-
Grilled platters
-
Family portions
-
Delivery packaging
-
Restaurant branding
